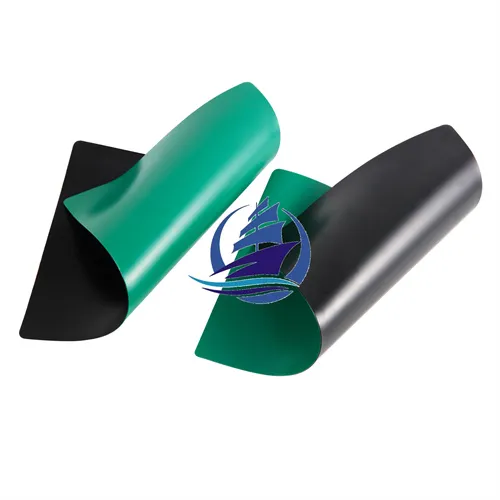

HDPE Smooth Geomembrane Liner
Yingfan®️ HDPE smooth Geomembranes can be used in a wide range of projects where impermeability is required. With excellent durability, strong tensile strength and chemical resistance properties, the HDPE liner is extremely cost-effective product in the intense stresses of weather.
Product Description
Yingfan®️ HDPE Geomembranes can resistance to cracking and are resistant to UV radiation (sunlight). The geomembrane liners are able to retain their mechanical and physical properties when exposed to high temperatures.
By using new imported raw material, Shanghai Yingfan manufactures highest quality HDPE geomembranes that meet the national standard GB/T17643-2011, the Ministry of Construction CJ/T234-2006, American GRI-GM13, and German industrial standard.
Product Features
Low permeability
Excellent durability
Strong tensile strength
Extremely cost-effective
Chemical resistance properties
Resistant to aging and corrusion
High performance in the intense stresses of weather
Our product is the ideal material for
Aquaculture ponds, canals and water retaining
Industrial & Municipal Landfill
Environmental Remediation Capping
Chemical reaction pond & sedimentation basin
Fuel tank storage facilities & chemical holding basin
Semi-liquid manure and slurry
Mining & Tailing Dam… and more
PHYSICAL PROPERTIES
Thickness (mm) | Width (Meter) | Length (Meter) | SQM / Roll | Weight / Roll (kg) | SQM* / 40'GP |
| 0.25 | 6.0 - 8.0 | 80 | 480 / 640 | 112 / 150 | 102240 |
| 0.35 | 6.0 - 8.0 | 70 | 420 / 560 | 138 / 184 | 74340 |
| 0.50 | 6.0 - 8.0 | 50 | 300 / 400 | 141 / 188 | 54000 |
| 0.75 | 6.0 - 8.0 | 50 | 300 / 400 | 211 / 282 | 35280 |
| 1.00 | 6.0 - 8.0 | 50 | 300 / 400 | 282 / 376 | 26460 |
| 1.50 | 6.0 - 8.0 | 50 | 300 / 400 | 423 / 564 | 17640 |
| 2.00 | 6.0 - 8.0 | 50 | 300 / 400 | 564 / 752 | 13230 |
*Note: Maximum value.
We can manufacture the products upon the custom specifications or specific design criteria. (such as color, surface finishes, texturing and roll widths)
